Robot dengan ukuran besar

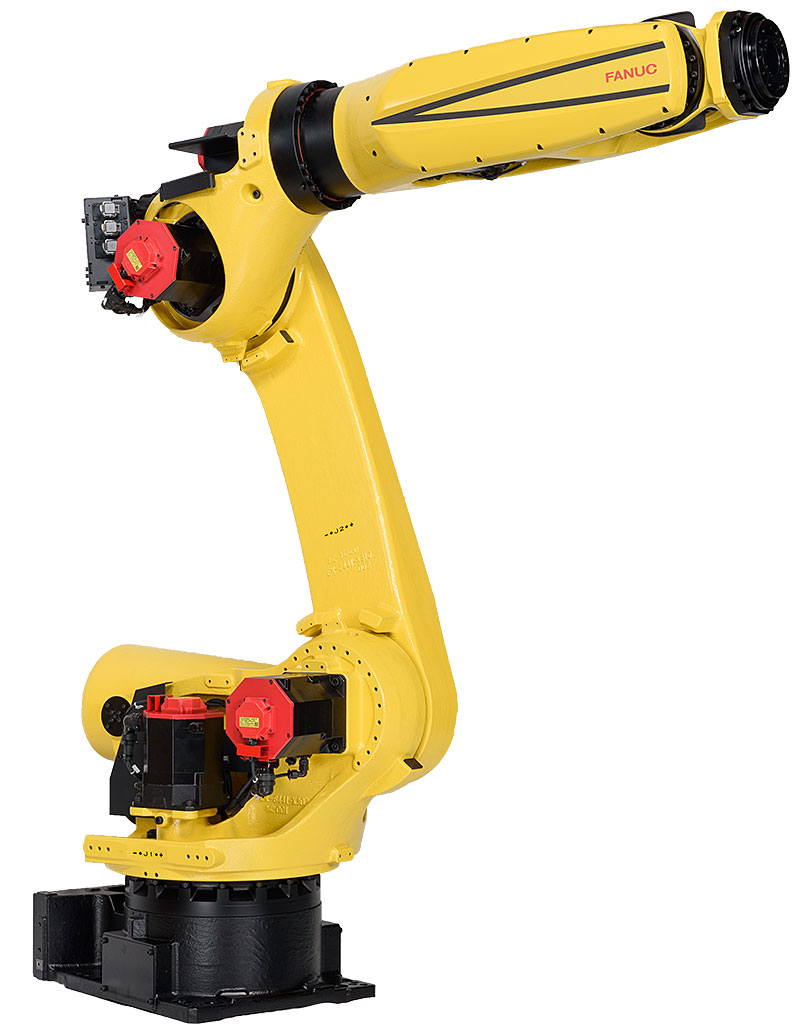

FANUC Robot R-2000iD
FANUC Robot R-2000iD specification
 Brosur (English) |
FANUC Robot R-2000iD |
/100FH |
/165FH |
/210FH |
| Aksis yang dikendalikan |
6 |
| Bedan maksimum pada wrist |
100kg |
165kg |
210kg |
| Rentang gerak (X, Y) |
2605mm, 3315mm |
| Kepresisian pengulangan |
±0.05mm |
| Berat (tanpa pijakan ) |
1150kg |
| Instalasi |
Floor |
| Kecocokan kontroler |
R-30iB/R-30iB Plus (A-, B-cabinet), R-30iB Mate/R-30iB Mate Plus (standard) |
| Kapasitas daya input |
12kVA |
| Aplikasi |
Handling |
x |
| Assembling |
x |
| Sealing |
x |
| Spot welding |
x |
| Dan lainnya |
Mold handling, Press to press handling, Deburring |
Robot FANUC R-2000iC
FANUC Robot R-2000iC specification
Brosur (Inggris) |
Robot FANUC R-2000iC |
/165F |
/210F |
/240F |
/125L |
/270F |
/210L |
|
| Aksis yang dikendalikan |
6 |
| Beban maksimum pada wrist |
165kg |
210kg |
240kg |
125kg |
270kg |
210kg |
| Rentang gerak (X, Y) |
2655mm, 3414mm |
3100mm, 4304mm |
2655mm, 3414mm |
3100mm, 4304mm |
| Kepresisian pengulangan |
±0.05mm |
| Berat (tanpa pijakan) |
1090kg |
1115kg |
1320kg |
1350kg |
| Instalasi |
Floor |
| Kecocokan kontroler |
R-30iB/R-30iB Plus (A-, B-cabinet), R-30iB Mate/R-30iB Mate Plus (standard) |
R-30iB/R-30iB Plus (A-, B-cabinet) |
| Kapasitas daya input |
12kVA |
15kVA |
| Aplikasi |
Handling |
x |
x |
x |
| Assembling |
x |
x |
x |
| Sealing |
x |
x |
x |
| Spot welding |
x |
x |
x |
| Dan lainnya |
Mold handling, Press to press handling, Deburring |
| Robot FANUC R-2000iC |
/165R |
/210R |
/270R |
/100P |
/220U |
/190U |
/210WE |
| Aksis yang dikendalikan |
6 |
| Beban maksimum pada wrist |
165kg |
210kg |
270kg |
100kg |
220kg |
190kg |
210kg |
| Rentang gerak (X, Y) |
3095mm, 4733mm |
3540mm, 5623mm |
2518mm, 3414mm |
3100mm, 4304mm |
2450mm, 3415mm |
| Kepresisian pengulangan |
±0.05mm |
±0.10mm |
| Berat (tanpa pijakan) |
1370kg |
1590kg |
1470kg |
1020kg |
1400kg |
1180kg |
| Instalasi |
Rack |
Upside-down |
Floor |
| Kecocokan kontroler |
R-30iB/R-30iB Plus (A-, B-cabinet), R-30iB Mate/R-30iB Mate Plus (standard) |
R-30iB/R-30iB Plus (A-, B-cabinet) |
| Kapasitas daya input |
12kVA |
15kVA |
12kVA |
15kVA |
| Aplikasi |
Handling |
x |
x |
x |
x |
x |
x |
- |
| Assembling |
x |
x |
x |
- |
x |
x |
- |
| Sealing |
x |
x |
x |
- |
x |
x |
- |
| Spot welding |
x |
x |
x |
- |
x |
x |
- |
| Washing |
- |
- |
- |
- |
- |
- |
x |
| Dan lainnya |
Mold handling, Press to press handling, Deburring |
Robot FANUC M-900iB
Robot FANUC M-900iB specification
M-900iB Brosur (Inggris) |
Robot FANUC M-900iB |
/360 |
/280L |
/280 |
/330L |
/700 |
/400L |
| Aksis yang dikendalikan |
6 |
| Beban maksimum pada wrist |
360kg |
280kg |
280kg |
330kg |
700kg |
400kg |
| Rentang gerak (X, Y) |
2655mm, 3308mm |
3103mm, 4200mm |
2655mm, 3308mm |
3203mm, 3539mm |
2832mm, 3288mm |
3704mm (*) , 4621mm
* Wrist motion is restricted when the wrist payload is over 300kg |
| Kepresisian pengulangan |
±0.1mm |
±0.1mm |
| Berat (tanpa pijakan) |
1540kg |
1600kg |
1700kg |
1780kg |
2800kg |
3150kg |
| Instalasi |
Floor, Upside-down, Angle |
Rack |
Floor |
| Kecocokan kontroler |
R-30iB/R-30iB Plus (A-, B-cabinet) |
R-30iB/R-30iB Plus (B-cabinet) |
| Kapasitas daya input |
15kVA |
18kVA |
| Aplikasi |
Handling |
x |
x |
x |
x |
x |
x |
| Assembling |
x |
x |
x |
x |
x |
x |
| Sealing |
x |
x |
x |
x |
x |
x |
| Spot welding |
x |
x |
x |
x |
x |
x |
| Others |
Mold handling, Press to press handling, Deburring |
Robot FANUC M-2000iA
Robot FANUC M-2000iA specification
Brosur (Inggris) |
Robot FANUC M-2000iA |
/1200 |
/900L |
/2300 |
/1700L |
| Aksis yang dikendalikan |
6 |
| Beban maksimum pada wrist |
1200kg
(option: 1350kg) |
900kg |
2300kg |
1700kg |
| Rentang gerak (X, Y) |
3734mm, 4683mm |
4683mm, 6209mm |
3734mm, 4683mm |
4683mm, 6209mm |
| Kepresisian pengulangan |
±0.18mm |
±0.27mm |
| Berat |
8600kg |
9600kg |
11000kg |
12500kg |
| Instalasi |
Floor |
| Kecocokan kontroler / kapasitas daya input |
R-30iB/R-30iB Plus (A-, B-cabinet) / 30kVA |
| Aplikasi |
Handling |
